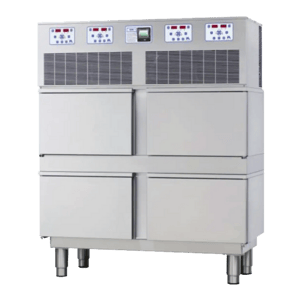

TK4C-2

54" x 25.38" x 68.13" High

Capacity

  • Twelve full-size food pans up to 2-1/2" deep
  • Twelve 4L gelato/ice cream containers
  • Twelve 5L gelato/ice cream containers
  • Four 12L gelato/ice cream containers

Performance

  • Blast chills up to 116 lb of product (29 lb per cavity) from 165°F to 37°F within two hours
  • Shock freezes up to 80 lb of product (20 lb per cavity) from 165°F to 0°F within four hours
  • Exceeds HACCP/FDA Food Code and NSF 7 guidelines



Construction

  • 304 stainless steel interior and exterior
  • Foamed-in-place CFC-free polyurethane insulation
  • Electrical control and refrigeration are located on top of the no-spill/splash zone
  • Removable drain pan
  • Heavy-duty stainless steel adjustable legs
  • Two 304 stainless steel wire shelves in each cavity

Refrigeration System

  • Self-contained, air-cooled
  • R-404A refrigerant
  • Complete with all required controls and accessories
  • 19,200 BTU/HR (20°F Evap. Temp./105°F Cond. Temp.)

Control System

  • Based on the latest microcontroller technology
  • Standard with one food probe and one air probe for each cavity
  • Operates in manual or fully automatic mode
  • 208VAC, 1Ph, 60Hz, 15 Amps Circuit
  • 6’ power cord with NEMA 5-15P plug
